Troubleshooting Guide: API Discovery – Missing Credential Fields on Add New Sources Screen

When attempting to add a new API Source in Acunetix 360 On-Prem (API Discovery enabled), the credential input fields fail to appear after selecting a Source type.

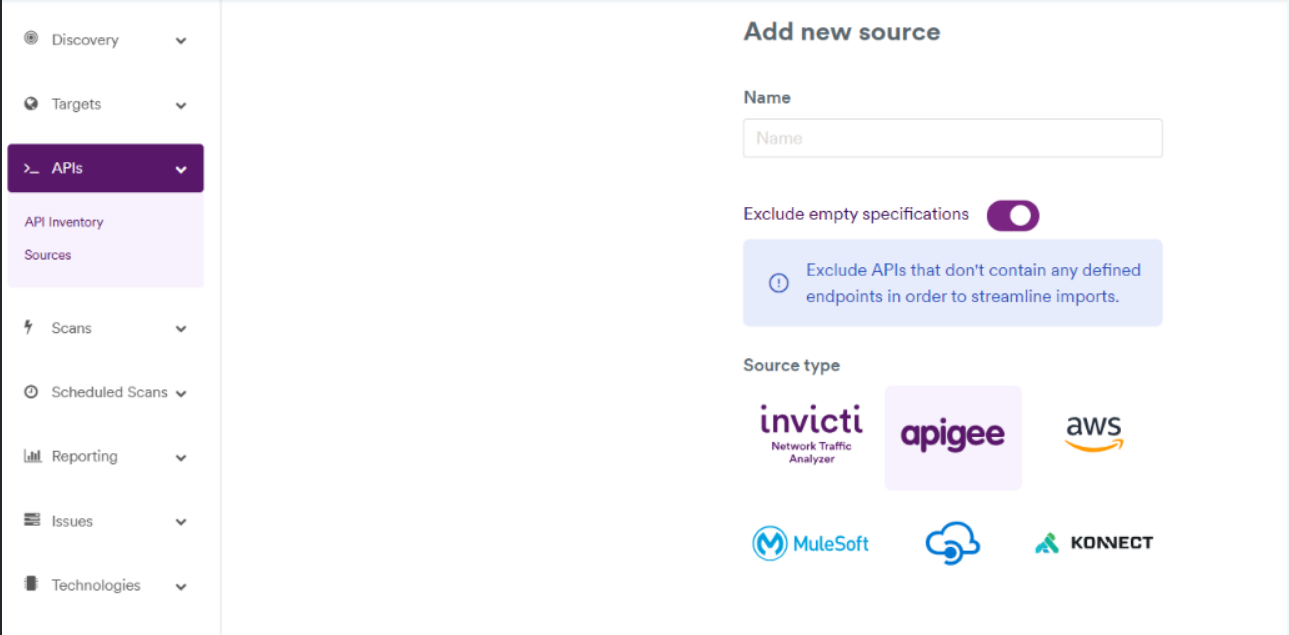

Issue Example:

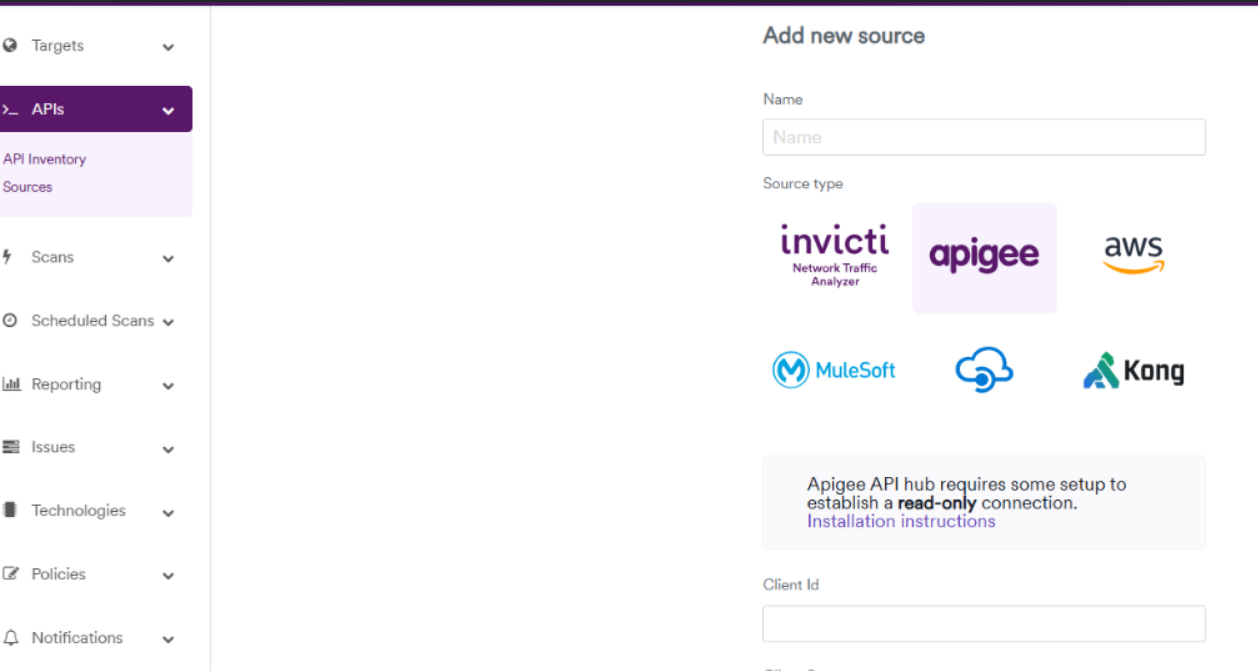

Expected Example:



Symptoms

• At APIs → Sources → Add New Source, no credential fields or instruction links are displayed after selecting a Source type.

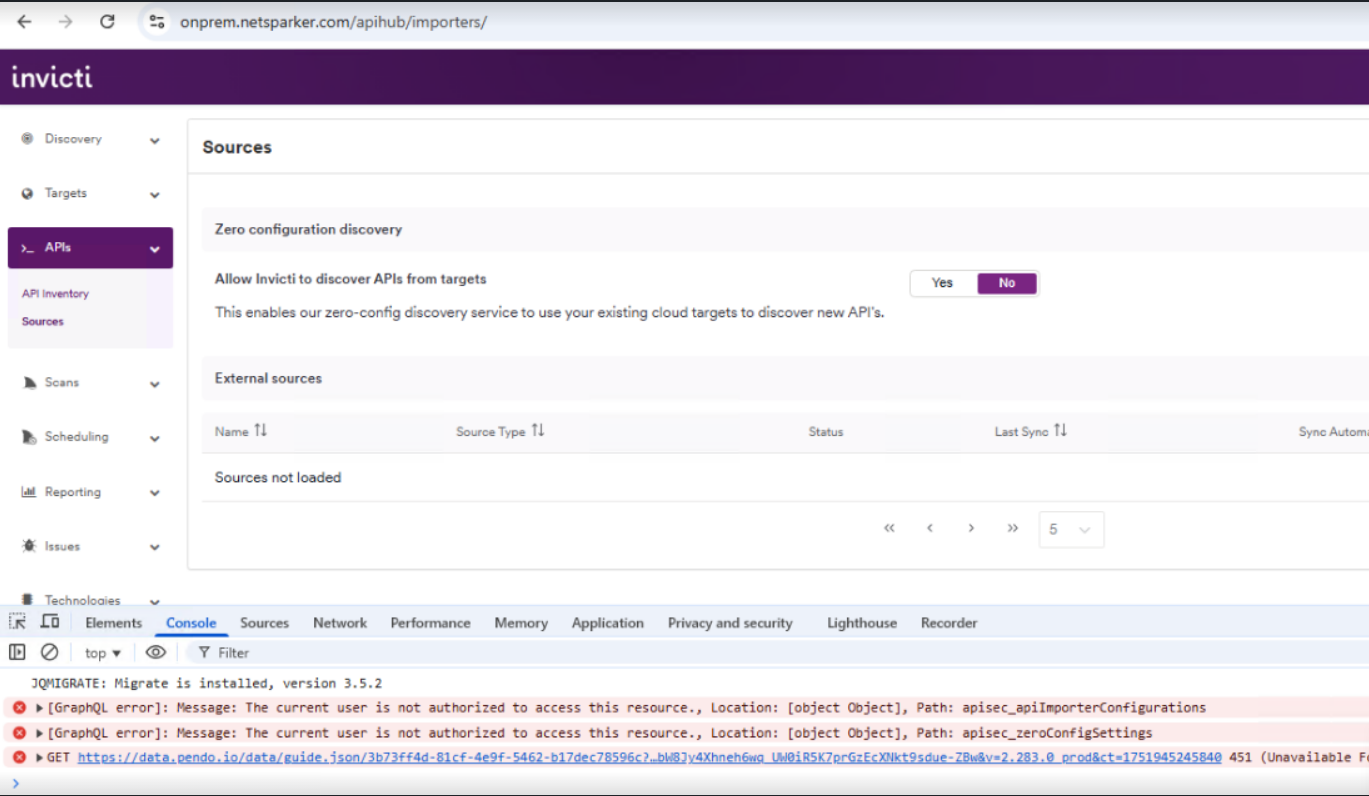

• Browser developer tools may show 500 Internal Server Error responses from the apihub/graphql endpoint. :





• APIHub reinstall attempts fail to restore expected functionality.

Root Cause Analysis

Through multiple reproductions and investigations, the following underlying causes were identified:

1. Incomplete API Hub reinstall

   • Required folders (such as graphql) are not recreated after uninstall/reinstall, leading to backend service errors.

2. Missing configuration in PostgreSQL database

   • The zeroconfig__enabled tenant setting is not present, preventing API Discovery from initializing shared keys and loading credential fields.

3. Incorrect or inconsistent HTTPS bindings

   • Mismatched bindings in IIS and appsettings.json can prevent the API Discovery service from responding correctly.

Troubleshooting Steps

Follow these steps in order:

** Ensure that the initial Whitelisting & Prerequisite Needs are Met, as well as, confirm the client has & followed the Guides provided for installation **
For A36:

Whitelisting requirements for Acunetix 360 On-Premises | Acunetix
Step 1: Components, architecture, prerequisites, and download | Acunetix
Installing Invicti API Security for Acunetix 360 On-Premises | Acunetix

For Invicti:

Whitelisting requirements for Invicti On-Premises | Invicti
Step 1: Components and architecture, prerequisites, and download | Invicti
Installing Invicti API Security On-Premises | Invicti

1. Verify Installation Integrity

• Confirm that API Hub Service and PostgreSQL were installed by the APIHub installer (not manually).

• Check for the presence of C:\Program Files (x86)\Invicti Enterprise API Hub Service\graphql.

  • If missing, create graphql folder in the API Hub installation directory and place a web.config file inside it (this can be empty).

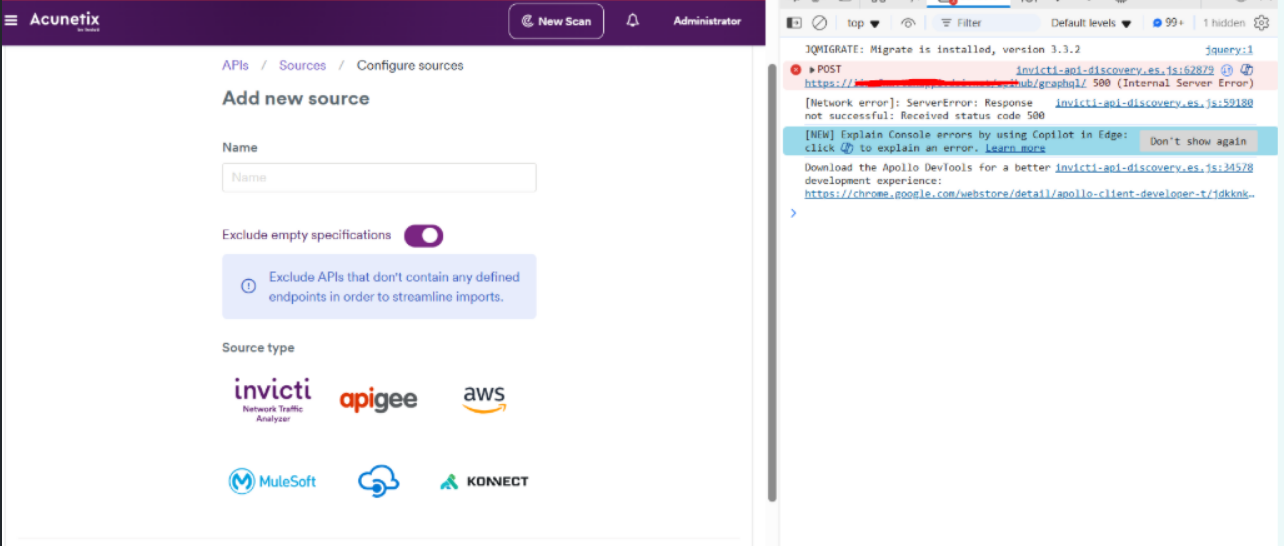

    • What you will see if it is missing:









2. Insert Missing Tenant Configuration

Run the following SQL query on the apihub database in PostgreSQL:

INSERT INTO apihub.apihub_tenant_settings(
    id, tenant_id, key, value)
VALUES (
    '76ba2e26-18da-4a90-b70c-fabb5495df87',
    '<Tenant_Account_ID>',
    'zeroconfig__enabled',
    'True');

id- random GUID value
tenant_id - Account ID of the customer on IE


3. Check Application Settings

• Open / update appsettings.json for API Discovery Service:

  Example of some parts from appsettings.json:

  APIDiscoService : https://onprem.netsparker.com:5217

  IE Web App - https://onprem.netsparker.com

  "Kestrel": {
    "Endpoints": {
      "Http": {
        "Url": "https://onprem.netsparker.com:5217"
      }
    }
  },
  "Deployment": {
    "Type": "on-prem",
    "PublicUrl": "https://onprem.netsparker.com:5217",
    "ProxyUrl": "https://onprem.netsparker.com:5217",
    "ProxyPathSuffix": "/apihub"
  },
  "InvictiEnterpriseApiClient": {
    "BaseUrl": "https://onprem.netsparker.com",
    "InternalApiBaseUrl": "https://onprem.netsparker.com"
  }


• Ensure HTTPS bindings match in IIS and in the config file.

4. Restart Services

• Restart the APIHub application pool in IIS.

• Reboot the server to ensure all services and bindings load with the updated settings.

Resolution

After performing the above steps:

• The graphql folder and configuration restore APIHub’s backend functionality.

• The PostgreSQL update ensures API Discovery initializes correctly.

• Consistent HTTPS bindings guarantee proper communication between APIHub and Invicti Enterprise.

Result: The Add New Source screen now correctly displays credential input fields and associated instructions.

Best Practices

• Always uninstall APIHub and PostgreSQL using the APIHub installer, not Windows “Apps & Features.”

• After reinstall, confirm the presence of the graphql folder and key config files.

• Maintain a backup of appsettings.json for quick recovery.

• If logs are not helpful, tools like ProcMon can trace real-time file access issues.
